FCA3000 — Three-Phase Rogowski Coil Converter

Three-phase Rogowski coil converter. Accepts three MFC150 Rogowski coil inputs (100 mV/kA @ 50 Hz, not included) and outputs a standardised 0...20 mA, 4...20 mA, or 0...10 V DC analog signal.

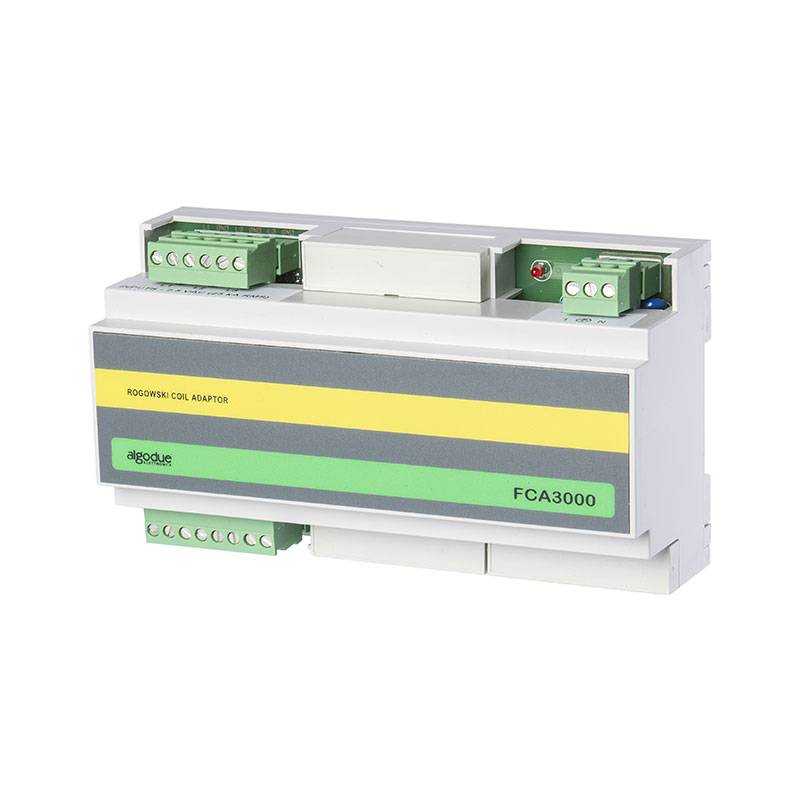

The Algodue FCA3000 is a three-phase Rogowski coil converter designed to work with three Algodue MFC150 Rogowski coils (100 mV/kA @ 50 Hz, sold separately). It converts the combined three-phase coil signals into a single standardised analog output: 0...20 mA, 4...20 mA, or 0...10 V DC, making it compatible with most PLCs and SCADA systems. Full-scale is selectable at 3000 A or 10000 A. The wide power supply (80...260 VAC) suits most industrial installations.

Full-scale: 3000 A or 10000 A
Output: 0...20 mA, 4...20 mA, or 0...10 V DC
Three-phase — for 3 × MFC150 Rogowski coils (not included)
Power supply: 80...260 VAC

Full-scale

Output

SKU 2101.0002.0001

$875AUD

In Stock

Qty
1
Back to shop

3000 A or 10000 A full-scale · 0...20 mA / 4...20 mA / 0...10 V DC output · 80–260 VAC

Technical detail

FCA3000 specifications

Electrical

Power supply80...260 VAC
Input coils3 × 100 mV/kA @ 50 Hz (MFC150, not included)
Full-scale3000 A or 10000 A
Output0...20 mA, 4...20 mA, or 0...10 V DC

Specifications per the Algodue 072025 price list. Three MFC150 Rogowski coils not included — order separately. Select full-scale range and output type at order.
