Algodue · Rogowski coil accessory

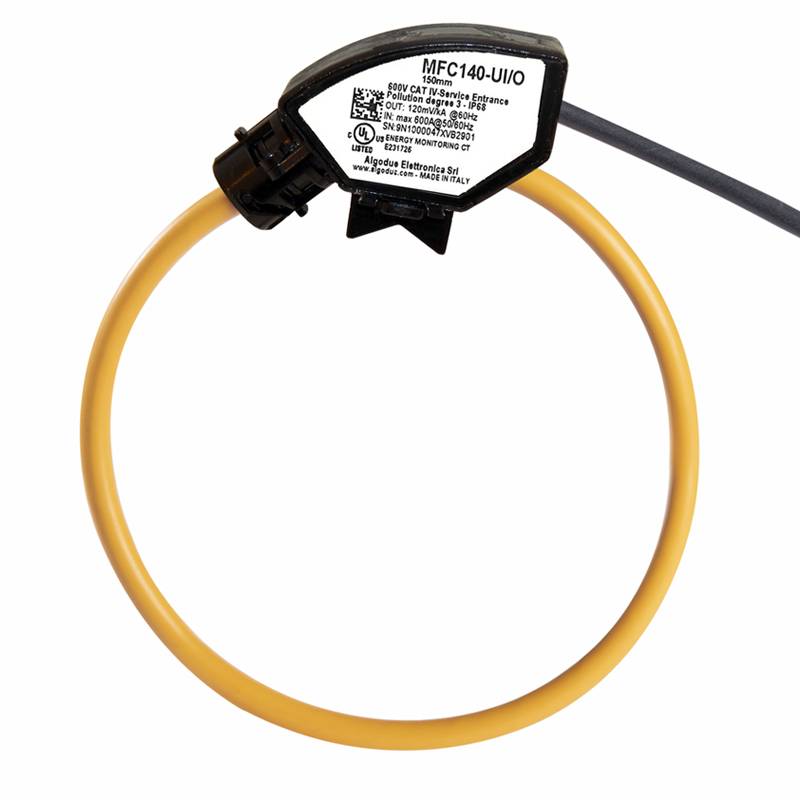

MFC140-UI/OF — UL 2808 Ø7 mm Flexible Rogowski Coil with Built-in Integrator

UL 2808 certified Ø7 mm outdoor flexible Rogowski coil with a built-in integrator — 333 mV full-scale output (200 A–1 kA). No external RPS integrator required.

The Algodue MFC140-UI/OF is a UL 2808 certified Ø7 mm outdoor flexible Rogowski coil with a built-in integrator, delivering a 333 mV full-scale voltage output. Unlike the passive MFC140-UI (which needs a separate RPS integrator), the /OF connects directly to a measuring instrument or inverter that accepts a 333 mV Rogowski signal. Four full-scale ranges are offered — 200 A (15 cm), 250 A (28 cm), 600 A (40 cm) and 1 kA (50 cm). Each coil ships with a 3 m cable.

Ø7 mm outdoor · UL 2808 · built-in integrator · 333 mV full-scale
