Algodue · Rogowski coil accessory

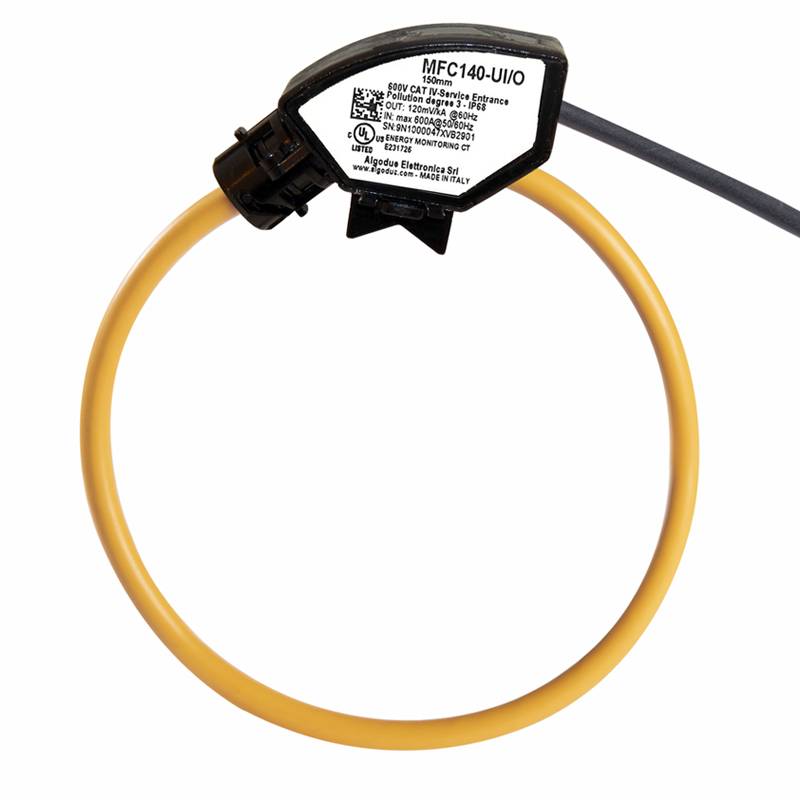

MFC140-UI — UL 2808 Ø7 mm Flexible Rogowski Coil
UL 2808 certified Ø7 mm flexible Rogowski coil for outdoor use. 120 mV/1 kA @ 60 Hz output.
The Algodue MFC140-UI is a UL 2808 certified Ø7 mm flexible Rogowski coil designed for outdoor use. With a 120 mV/1 kA @ 60 Hz output it is suited to UL-listed installations and North American applications. The coil clips over the conductor without opening the circuit. Available in four loop lengths (15–50 cm) to suit different conductor sizes. Each coil ships with a 3 m cable.
Ø7 mm flexible Rogowski coil · outdoor use
UL 2808 certified
3 m cable · 120 mV/1 kA @ 60 Hz output
UL-listed installations · North America compatible
Coil loop length
SKU 3701.0001.0001
$274AUD
In Stock
Qty
1
Ø7 mm · 3 m cable · Outdoor use · 120 mV/1 kA @ 60 Hz · UL 2808
Technical detail
MFC140-UI specifications
Coil & cable
Coil body diameterØ7 mm (flexible)
Output120 mV/1 kA @ 60 Hz
Cable length3 m
Suitable forOutdoor use
CertificationUL 2808
Specifications per the Algodue 072025 price list. UL 2808 certified. Output 120 mV/1 kA @ 60 Hz.
