Algodue · Rogowski coil accessory

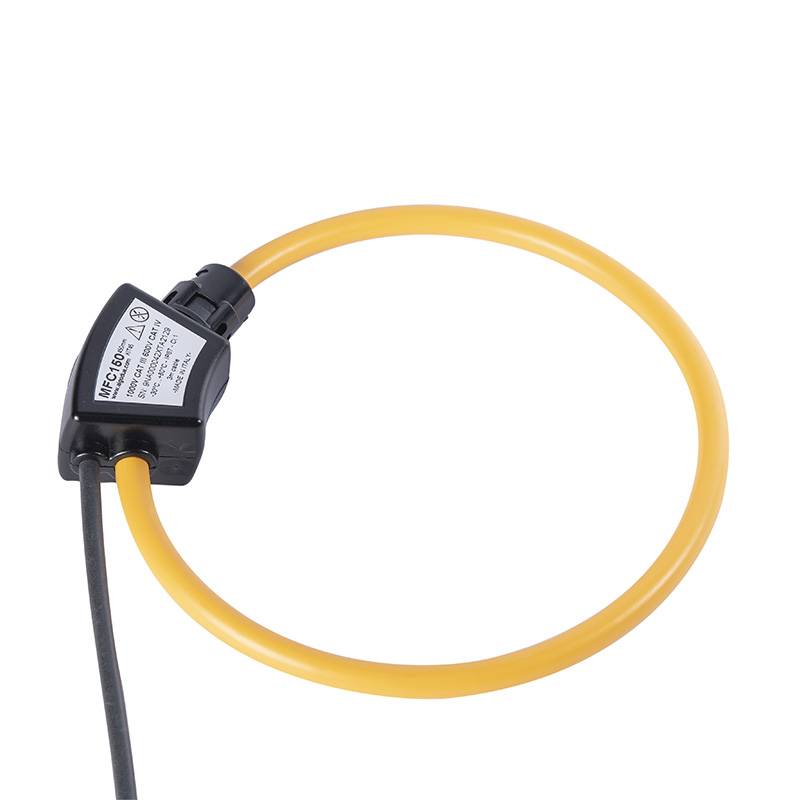

MFC150/F — Ø8 mm Flexible Rogowski Coil with Built-in Integrator

Ø8 mm flexible Rogowski coil with a built-in integrator — 333 mV full-scale output. Connects straight to a 333 mV input; no external RPS integrator required.

The Algodue MFC150/F is an Ø8 mm flexible Rogowski coil with a built-in integrator, delivering a 333 mV full-scale voltage output. Unlike the passive MFC150 (which needs a separate RPS integrator), the /F connects directly to a measuring instrument or inverter that accepts a 333 mV Rogowski signal. Three standard full-scale ranges are offered — 1 kA (40 cm), 2 kA (60 cm) and 5 kA (90 cm) — plus two VPT custom-length 60 cm builds at 1 kA and 3 kA. Each coil ships with a 3 m cable.

Ø8 mm · built-in integrator · 333 mV full-scale
