Algodue · Rogowski coil accessory

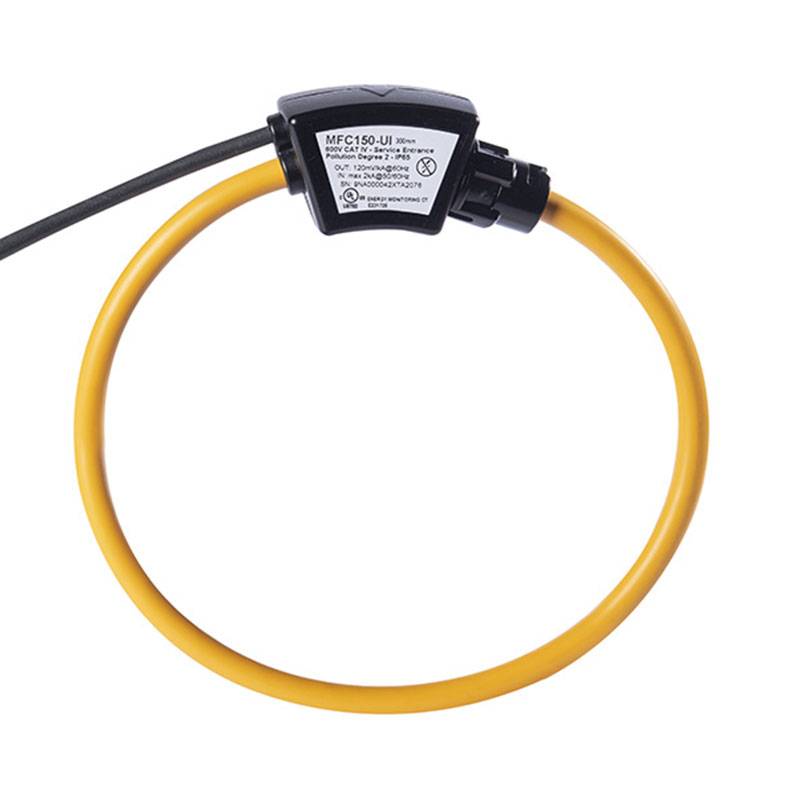

MFC150-UI/F — UL 2808 Ø8 mm Flexible Rogowski Coil with Built-in Integrator

UL 2808 certified Ø8 mm flexible Rogowski coil with a built-in integrator — 333 mV full-scale output. Connects straight to a 333 mV input; no external RPS integrator required.

The Algodue MFC150-UI/F is a UL 2808 certified Ø8 mm flexible Rogowski coil with a built-in integrator, delivering a 333 mV full-scale voltage output. Unlike the passive MFC150-UI (which needs a separate RPS integrator), the /F connects directly to a measuring instrument or inverter that accepts a 333 mV Rogowski signal. Three standard full-scale ranges are offered — 1 kA (40 cm), 2 kA (60 cm) and 5 kA (90 cm). Each coil ships with a 3 m cable.

Ø8 mm · UL 2808 · built-in integrator · 333 mV full-scale
