Algodue · Rogowski coil accessory

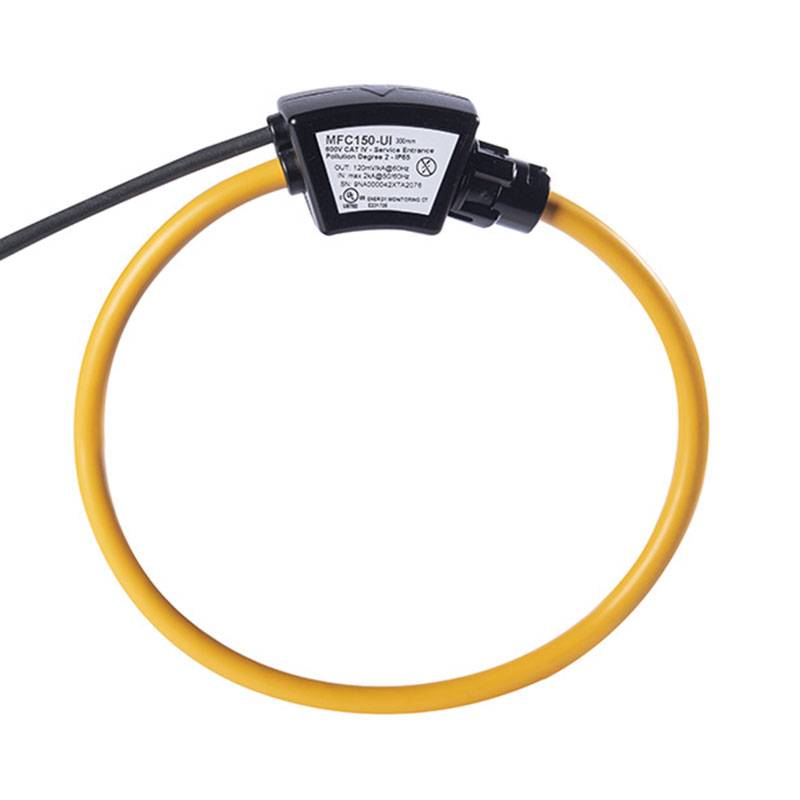

MFC150-UI — UL 2808 Ø8 mm Flexible Rogowski Coil

UL 2808 certified Ø8 mm flexible Rogowski coil. 120 mV/1 kA @ 60 Hz output.

The Algodue MFC150-UI is a UL 2808 certified Ø8 mm flexible Rogowski coil. With a 120 mV/1 kA @ 60 Hz output it is suited to UL-listed installations and North American applications. The coil clips over the conductor without opening the circuit. Available in six loop lengths (30–180 cm) to suit conductor sizes from approximately 7 cm to 55 cm diameter. Each coil ships with a 3 m cable.

Ø8 mm · 3 m cable · 120 mV/1 kA @ 60 Hz · UL 2808
