PQM4000 — Class A Power Quality Analyser

Class A power quality analyser with harmonic analysis, GPS synchronisation, Ethernet + WiFi + RS485 connectivity, and 16 GB onboard recording.

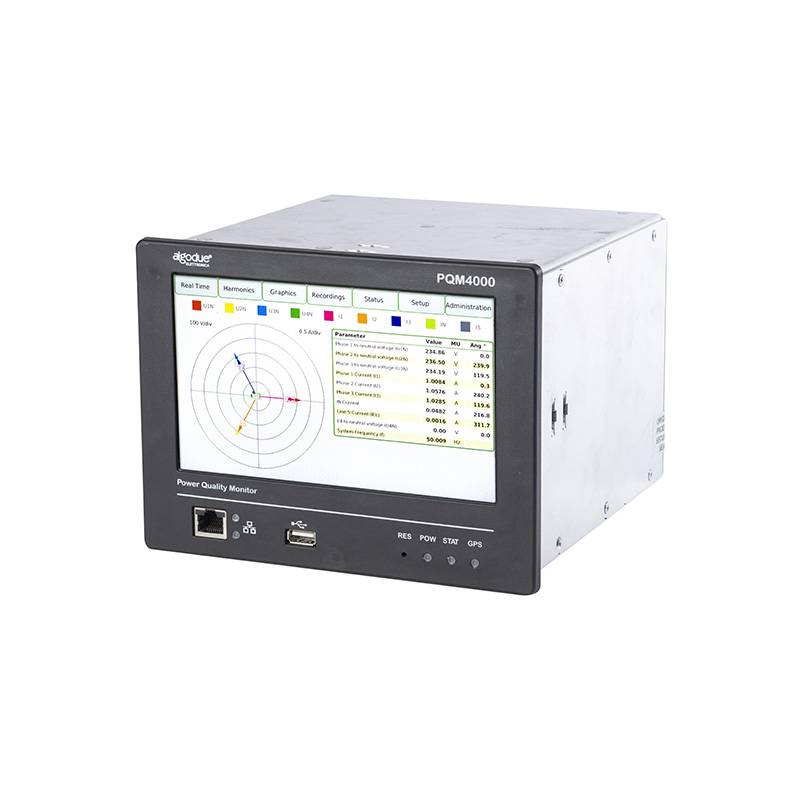

The Algodue PQM4000 is a Class A power quality analyser certified to IEC/EN 61000-4-30:2015 Ed.3, in DIN 192x144 panel form factor. It supports 1/5A CT or clamp current input, connects via Ethernet (Modbus TCP), RS485 (read-only), WiFi, and USB, and includes a built-in GPS module for clock synchronisation. Available in BASIC, DMD (demand recording), ENH (harmonic analysis — THD/TDD), and PLUS (DMD + ENH, full-feature) software versions, with 16 GB onboard data memory, 4 digital inputs, 4 digital outputs, and 4 analog outputs.

Class A power quality (IEC/EN 61000-4-30:2015 Ed.3)
Harmonics — THD, TDD (ENH / PLUS versions)
Ethernet · WiFi · RS485 · USB
16 GB onboard data recording · GPS sync

Input sensor type

Analysis features

SKU 1301.0002.0001

$5,819AUD

Backorder

Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.

Qty
1
Back to shop

Class A (IEC/EN 61000-4-30:2015 Ed.3) · DIN 192x144 panel

Technical detail

PQM4000 specifications

Electrical & communication

FormatPanel mount, DIN 192x144
StandardClass A (IEC/EN 61000-4-30:2015 Ed.3)
Current inputVia 1/5A CTs (not included) or clamp sensors (not included)
Power supply100...240 VAC / 65...250 VDC
CommunicationEthernet (Modbus TCP), RS485 (read-only), WiFi, USB
GPS syncBuilt-in GPS module for RTC synchronisation
Memory16 GB
Digital inputs4 (remote control signal management)
Digital outputs4 (alarm or pulse emission)
Analog outputs4 (real-time parameter transmission)
VersionsBASIC / DMD (demand) / ENH (harmonics THD+TDD) / PLUS (DMD + ENH)

Documents

Specifications per the Algodue PQM4000 product documentation (IEC/EN 61000-4-30:2015 Ed.3). CTs and clamps not included.
