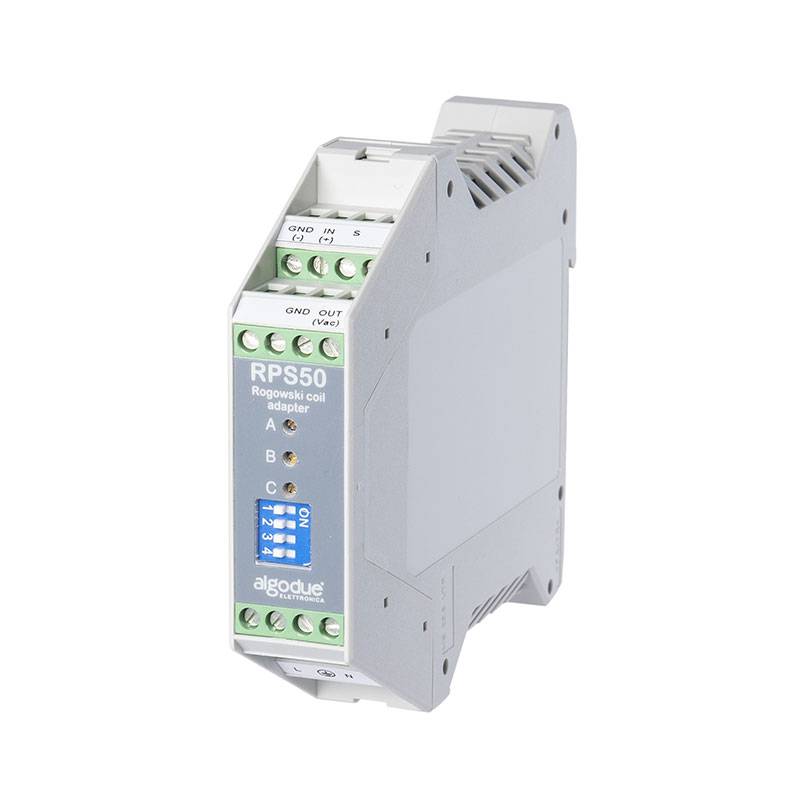

RPS50 — Multiscale Single Rogowski Coil Converter

Name: RPS50 — Multiscale Single Rogowski Coil Converter
Brand: Algodue
SKU: 2102.0002.0001
Price: 537.05 AUD
Availability: InStock

Multiscale single Rogowski coil converter. Converts MFC150 or MFC140 coil output (100 mV/kA @ 50 Hz) to 1 V or 3 V RMS, with optional simultaneous 0...10 V DC output.

The Algodue RPS50 is a multiscale single Rogowski coil converter that converts the voltage output of an Algodue MFC150 or MFC140 Rogowski coil (100 mV/kA @ 50 Hz, sold separately) into a 1 V or 3 V RMS voltage signal. An optional simultaneous 0...10 V DC analog output is available on selected order codes. A front-panel full-scale selector covers three overlapping ranges (0.5–2.5–10 kA, 2.5–10–50 kA, or 10–50–250 kA). The wide power supply (80–250 VAC) suits most industrial environments.

Full-scale: 0.5 / 2.5 / 10 kA, 2.5 / 10 / 50 kA, or 10 / 50 / 250 kA

Output 1: 1 V RMS or 3 V RMS

Optional 0...10 V DC analog output (Output 2)

For Algodue MFC150 or MFC140 coil (not included)

Full-scale

Output 1

Output 2

SKU 2102.0002.0001

$537AUD

In Stock

Qty

Back to shop

0.5–250 kA full-scale ranges · 1 V or 3 V RMS · optional 0...10 V DC · 80–250 VAC

Technical detail

RPS50 specifications

Electrical

Power supply80...250 VAC

Input coil100 mV/kA @ 50 Hz (MFC150 or MFC140, not included)

Full-scale0.5–2.5–10 kA, 2.5–10–50 kA, or 10–50–250 kA

Output 11 V RMS (crest ≤ 4.5) or 3 V RMS (crest ≤ 1.5)

Output 2 (opt.)0...10 V DC (simultaneous with Output 1)

Specifications per the Algodue 072025 price list. MFC150 or MFC140 Rogowski coil not included. Select full-scale range, Output 1 type, and optional 0...10 V DC Output 2 at order.
