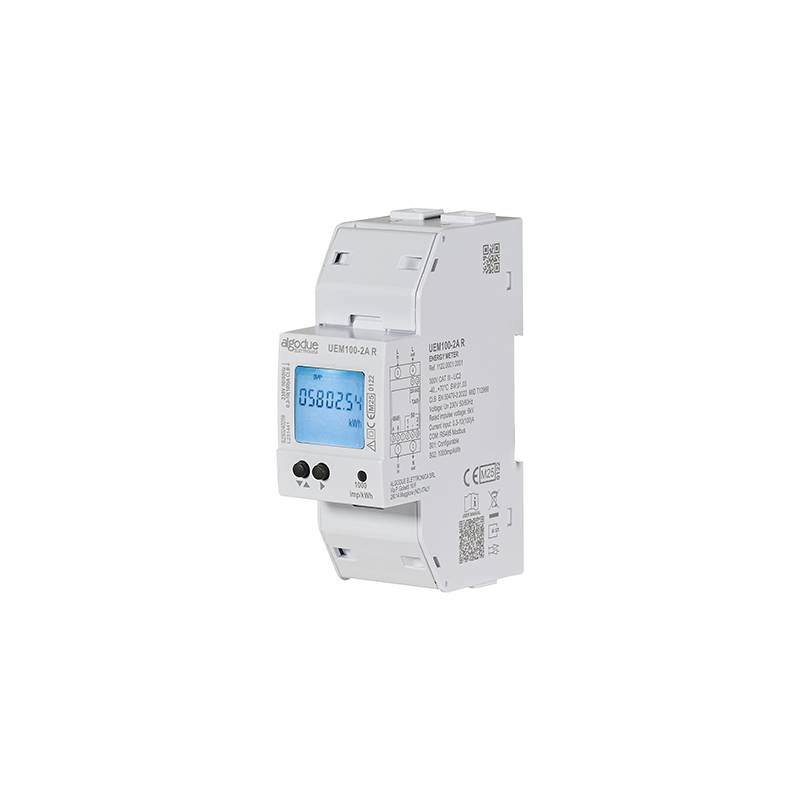

UEM100-2A — Single-Phase MID Energy Meter
Single-phase 100A direct-connect MID energy meter with RS485 Modbus RTU.
The Algodue UEM100-2A is a single-phase MID energy meter for 100A direct-connection applications. It is self-powered from the measured voltage circuit and supports RS485 Modbus RTU communication, a tariff input, and 2 S0 pulse outputs. DIN-rail mounted. MID certified.
100A direct connection
MID certified
RS485 Modbus RTU
SKU 1122.0001.0001
$303AUD
In Stock
Qty
1
MID certified · DIN-rail mount
Technical detail
UEM100-2A specifications
Electrical & communication
PhaseSingle-phase
Current inputDirect, up to 100A
Voltage input230V 50/60Hz
Power supplySelf-powered (voltage circuit)
CommunicationRS485 Modbus RTU (built-in)
OutputsTariff input, 2 S0 pulse outputs
Operating temperatureUp to 70°C
CertificationMID
MountingDIN rail
Specifications per the Algodue UEM100-2A product documentation.
