Algodue · Three-phase metering

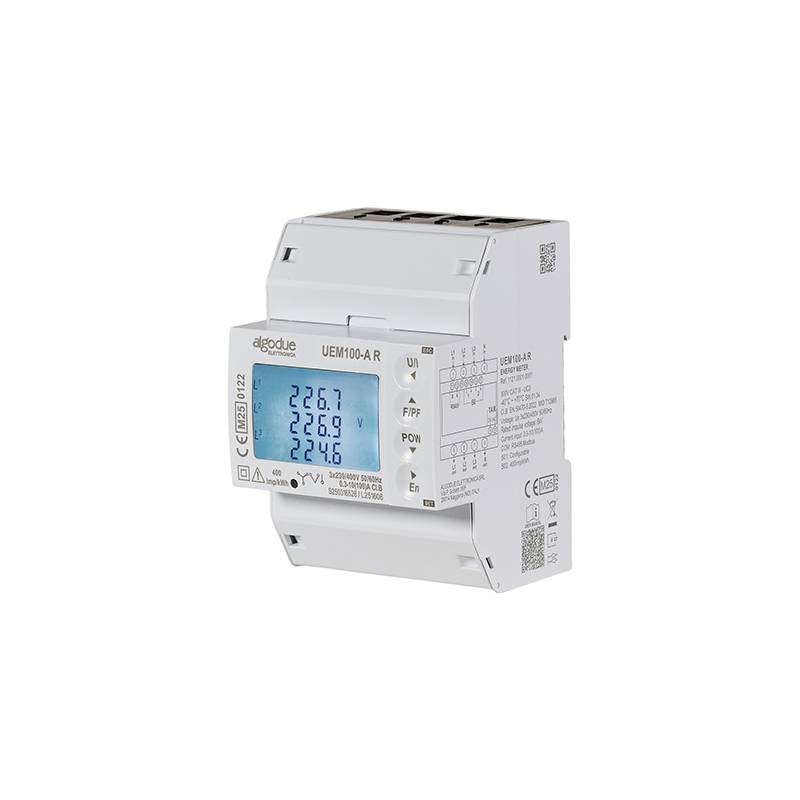

UEM100 — Three-Phase MID Energy Meter
Three-phase 100A direct-connect MID energy meter with RS485 Modbus RTU or M-Bus.
The Algodue UEM100 is a three-phase MID energy meter for 100A direct-connection applications. It is self-powered from the measured voltage circuit and supports RS485 Modbus RTU (UEM100-A R) or M-Bus (UEM100-A M) communication, a tariff input, and 2 S0 pulse outputs. DIN-rail mounted. MID certified.
100A direct connection
MID certified
RS485 Modbus RTU or M-Bus
Communication protocol
SKU 1121.0001.0001
$286AUD
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
Qty
1
MID certified · DIN-rail mount
Technical detail
UEM100 specifications
Electrical & communication
PhaseThree-phase
Current inputDirect, up to 100A
Voltage input3×230/400V 50/60Hz
Power supplySelf-powered (voltage circuit)
CommunicationRS485 Modbus RTU (R) or M-Bus (M)
OutputsTariff input, 2 S0 pulse outputs
Operating temperatureUp to 70°C
CertificationMID
MountingDIN rail
Specifications per the Algodue UEM100 product documentation.
