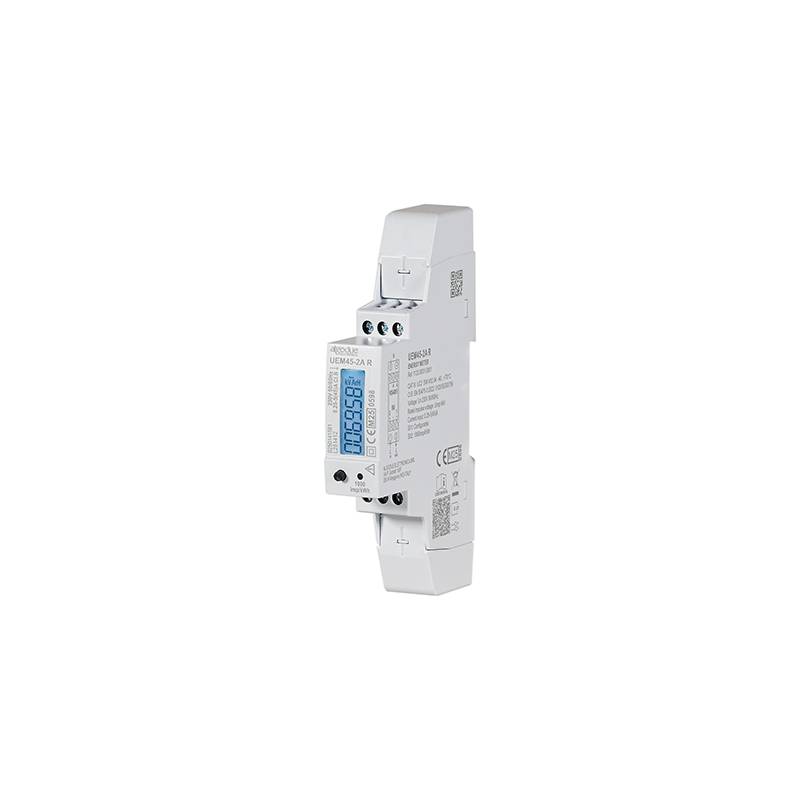

UEM45 — Single-Phase MID Energy Meter

Algodue · Single-phase metering

UEM45 — Single-Phase MID Energy Meter

Single-phase 45A direct-connect MID energy meter with RS485 Modbus RTU or M-Bus communication.

The Algodue UEM45 is a single-phase MID energy meter for 45A direct-connection applications. It is self-powered from the measured voltage circuit and supports RS485 Modbus RTU (UEM45-2A R) or M-Bus (UEM45-2A M) communication, a tariff input, and 2 S0 pulse outputs. DIN-rail mounted. MID certified.

45A direct connection
MID certified
RS485 Modbus RTU or M-Bus

Communication protocol

SKU 1123.0001.0001

$143AUD

Backorder

Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.

Qty
1
Back to shop

MID certified · DIN-rail mount

Technical detail

UEM45 specifications

Electrical & communication

PhaseSingle-phase
Current inputDirect, up to 45A
Voltage input230V 50/60Hz
Power supplySelf-powered (voltage circuit)
CommunicationRS485 Modbus RTU (R) or M-Bus (M)
OutputsTariff input, 2 S0 pulse outputs
Operating temperatureUp to 70°C
CertificationMID
MountingDIN rail

Documents

Specifications per the Algodue UEM45-2A product documentation.
