Algodue · Multi-load metering
UEM4L — Multi-Load Three-Phase MID Energy Meter (4 channels)
Four three-phase loads metered from one DIN-rail MID meter, using EMCT CT blocks and a built-in RS485 port.

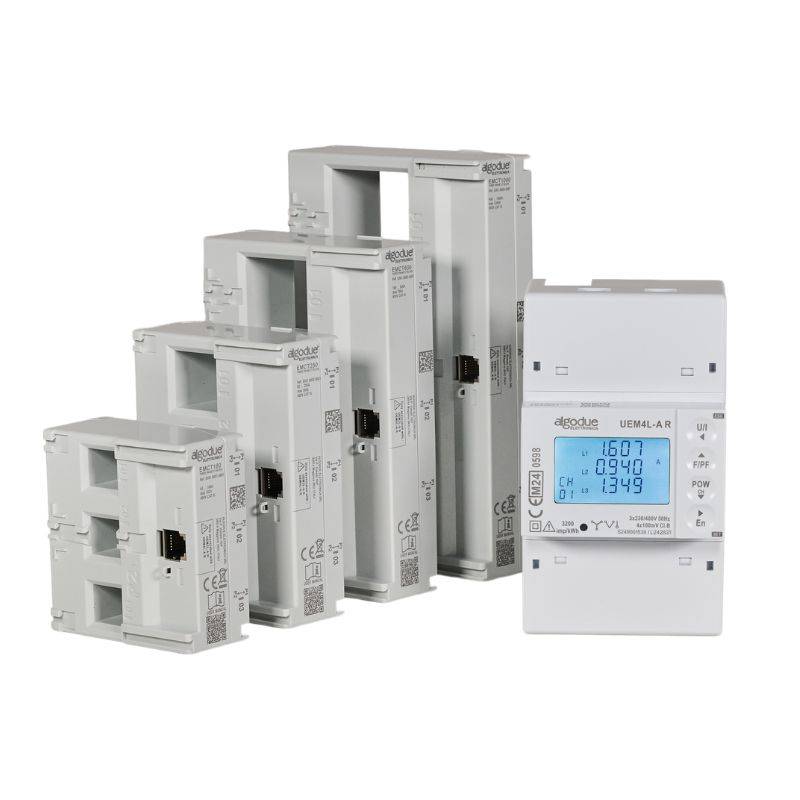

The Algodue UEM4L-A R is a multi-load three-phase MID energy meter that meters four separate three-phase loads from a single DIN-rail unit. Each channel connects to an EMCT three-phase current-transformer block including 160, 250, 630, and 1,000A options (sold separately) through a dedicated RJ12 cable, and the meter reports over its built-in RS485 Modbus port. Rated to 70 °C, 100…277 V supply.
SKU 1124.0001.0001
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
4 channels · MID certified · RS485 · EMCT CT blocks · DIN-rail mount
Technical detail
UEM4L specifications
Electrical & communication
Specifications per the Algodue OEM 2026 price list (Ed2604). EMCT CT blocks and RJ12 cables are sold separately; different cable lengths may be used on different channels.
Works well with
Recommended Accessories
Current Transformers (EMCT)
EMCT — Three-Phase Current Transformer Block for UEM2L / UEM4LThree-phase CT blocks for the UEM2L / UEM4L multi-load meters — four sizes from 40 A to 1000 A, one RJ12 cable per load.
For UEM2L / UEM4L multi-load meters
Four ranges: 40 A to 1000 A
One RJ12 cable per load
Mounting accessories included
Cables & Adapters
RJ12 Connection Cable — EMCT CT Block to UEM2L / UEM4LThe dedicated RJ12 lead between an EMCT CT block and a UEM2L / UEM4L meter channel — 1 to 10 m.
For EMCT blocks and UEM2L / UEM4L meters
1 m, 3 m, 5 m or 10 m
One cable per metered load
