UEM80 — Three-Phase MID Energy Meter (Ethernet)
Three-phase 80A direct-connect MID energy meter with built-in Ethernet.

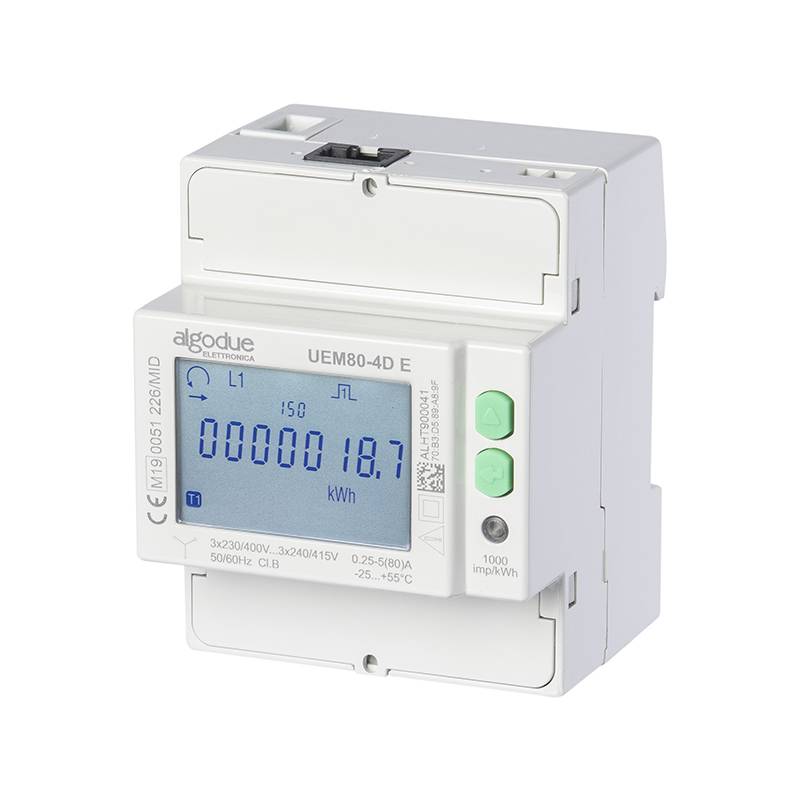

The Algodue UEM80 (UEM80-4D E) is a three-phase MID energy meter for 80A direct-connection applications. It is self-powered from the measured voltage circuit and provides built-in Ethernet communication and 1 S0 pulse output. DIN-rail mounted. MID certified.
80A direct connection
MID certified
Built-in Ethernet
SKU 1104.0050.0001
$815AUD
In Stock
Qty
1
MID certified · Ethernet · DIN-rail mount
Technical detail
UEM80 specifications
Electrical & communication
PhaseThree-phase
Current inputDirect, up to 80A
Voltage input3×230/400V … 3×240/415V 50/60Hz
Power supplySelf-powered (voltage circuit)
CommunicationEthernet
Outputs1 S0 pulse output
CertificationMID
MountingDIN rail
Specifications per the Algodue UEM80-4D E product documentation.
