UEMCT — Three-Phase MID Energy Meter (CT-input)

Algodue · Three-phase metering

UEMCT — Three-Phase MID Energy Meter (CT-input)

Three-phase CT-input MID energy meter (EN 50470-3 Class C) with built-in RS485 or M-Bus, rated to 70 °C.

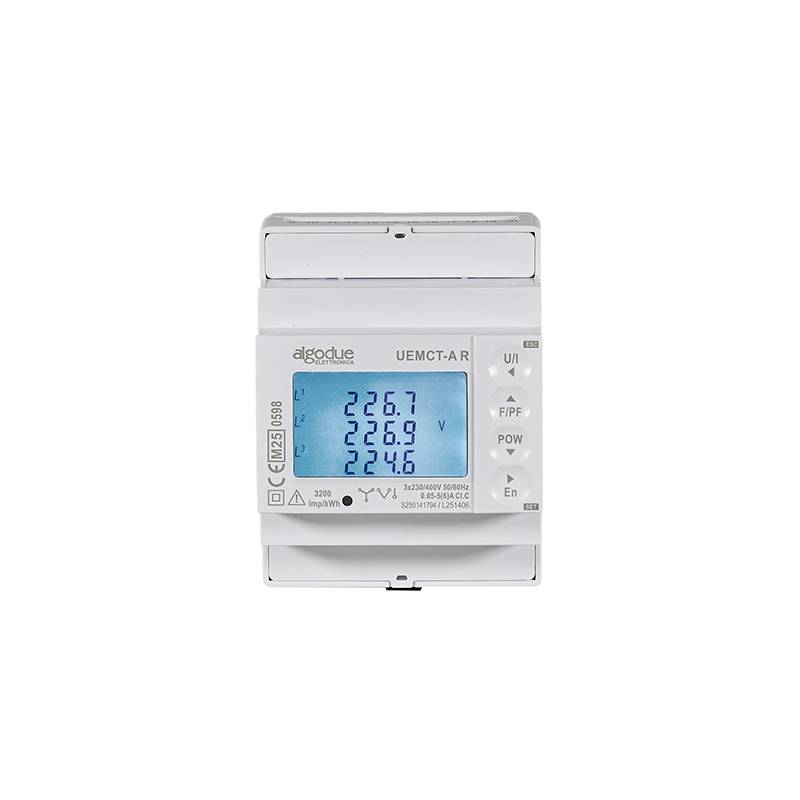

The Algodue UEMCT is a three-phase MID energy meter for 2/3/4-wire networks measured through standard 1/5A current transformers (not included). It is EN 50470-3 Class C, rated to 70 °C, powered from a 100…277 VAC auxiliary supply, and ships with a built-in RS485 Modbus port (UEMCT-A R) or M-Bus port (UEMCT-A M), a tariff input and two S0 pulse outputs.

EN 50470-3 Class C · MID
CT-input (1/5A CTs, not included)
RS485 Modbus RTU or M-Bus
Tariff input · 2 S0 outputs

Communication protocol

SKU 1120.0001.0001

$281AUD

Backorder

Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.

Qty
1
Back to shop

EN 50470-3 Class C · MID certified · RS485 or M-Bus · DIN-rail mount

Technical detail

UEMCT specifications

Electrical & communication

PhaseThree-phase, 2/3/4-wire networks
Current inputStandard 1/5A CTs (not included)
Voltage input3×230/400V 50/60Hz
Auxiliary power supply100…277 VAC
CommunicationRS485 (UEMCT-A R) or M-Bus (UEMCT-A M), built in
Tariff inputYes
Outputs2 S0 pulse outputs
Operating temperatureUp to 70 °C
AccuracyEN 50470-3 Class C
CertificationMID
MountingDIN rail

Documents

Specifications per the Algodue OEM 2026 price list (Ed2604). Current transformers (CTs) are not included and must be sourced separately.
