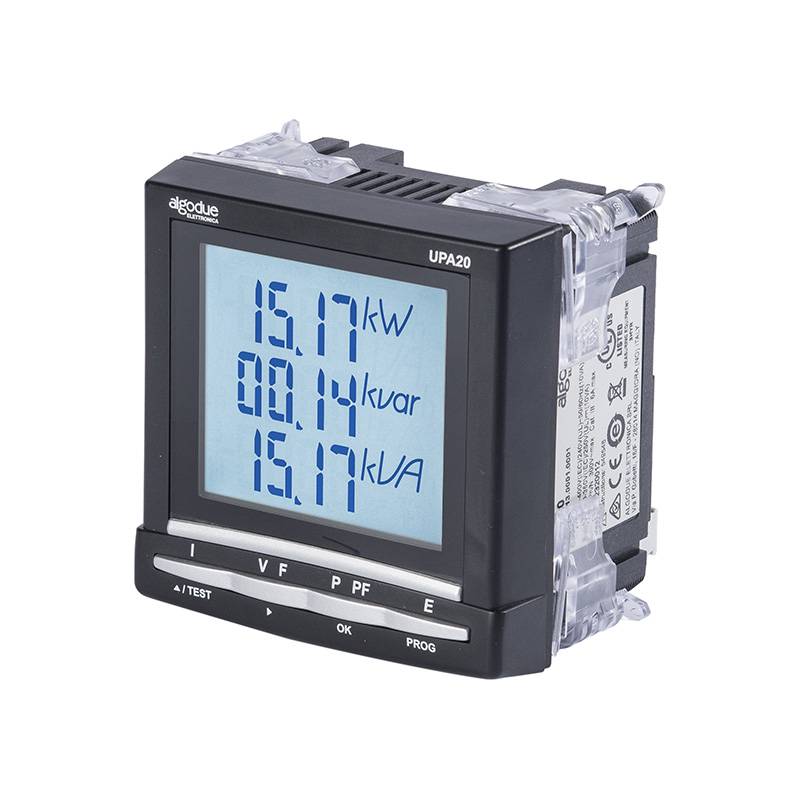

UPA20 — DIN 96x96 Multifunction Multi-Measurement Meter
DIN 96x96 panel-mount multifunction multi-measurement meter, 1/5A CT input, UL listed.
The Algodue UPA20 is a DIN 96x96 panel-mount multifunction meter designed for multi-parameter electrical measurement. It accepts 1/5A current transformer input and features a wide-range auxiliary power supply (110...400VAC/120...350VDC). The UPA20 supports modular expansion via plug-in modules for RS485 Modbus communication and digital I/O — sold separately. UL listed for North American and international installations.
SKU 1213.0001.0001
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
1/5A CT input · 110...400VAC / 120...350VDC · DIN 96x96 panel · UL listed
Technical detail
UPA20 specifications
Electrical
Specifications per the Algodue UPA20 price list. CTs not included. Plug-in modules sold separately.
Works well with
Recommended Accessories
Plug-in Modules (UPA)
UPA20 Plug-in Modules — RS485 and Digital I/OAdd RS485 Modbus or digital I/O to the UPA20 with a plug-in module.
For the UPA20 multifunction meter
RS485 Modbus communication
Digital output for pulses / alarms
Option with 3 digital inputs
Cables & Adapters
ADAPT96_144 — Panel Adapter Kit, 144 mm Cutout to 96 mm InstrumentMount a 96×96 UPA instrument in a 144 mm cutout — no panel re-cut.
144 mm cutout to 96 mm instrument
For UPA20, UPA30 and UPA41
Replace a 144x144 meter without re-cutting
