UPA30 — DIN 96x96 Multifunction Energy Monitoring Meter
DIN 96x96 panel-mount multifunction meter for energy monitoring, 1/5A CT input, AC or DC power supply, UL listed.

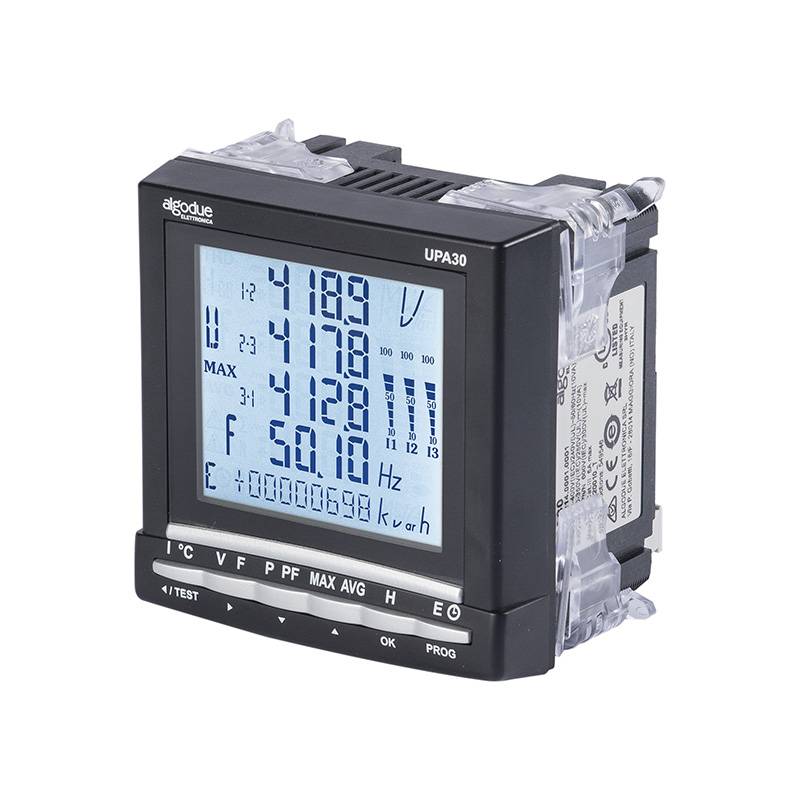

The Algodue UPA30 is a DIN 96x96 panel-mount multifunction meter designed for energy monitoring applications. It accepts 1/5A current transformer input and is available with AC wide-range (110...400VAC/120...350VDC) or DC low-voltage (12...48VDC) auxiliary power supply. The UPA30 supports modular expansion via plug-in modules for RS485 Modbus communication, digital outputs and inputs, analog outputs, and temperature measurement — all sold separately. UL listed.
Power supply type
SKU 1214.0001.0001
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
1/5A CT input · AC or DC supply · DIN 96x96 panel · UL listed
Technical detail
UPA30 specifications
Electrical
Specifications per the Algodue UPA30 price list. CTs not included. Plug-in modules sold separately.
Works well with
Recommended Accessories
Plug-in Modules (UPA)
UPA30 / UPA41 Plug-in Modules — RS485, Pulse, I/O, Analog and TemperatureAdd communication, pulse, digital, analog or temperature functions to the UPA30 and UPA41 with a plug-in module.
For the UPA30 and UPA41 meters
RS485 Modbus communication
Pulse, digital and analog outputs
PT100 temperature option
