UPA41 — DIN 96x96 Multifunction Energy Monitoring Meter (Neutral Current)
DIN 96x96 panel-mount multifunction energy monitoring meter with built-in neutral current measurement, 1/5A CT input, AC or DC power supply, UL listed.

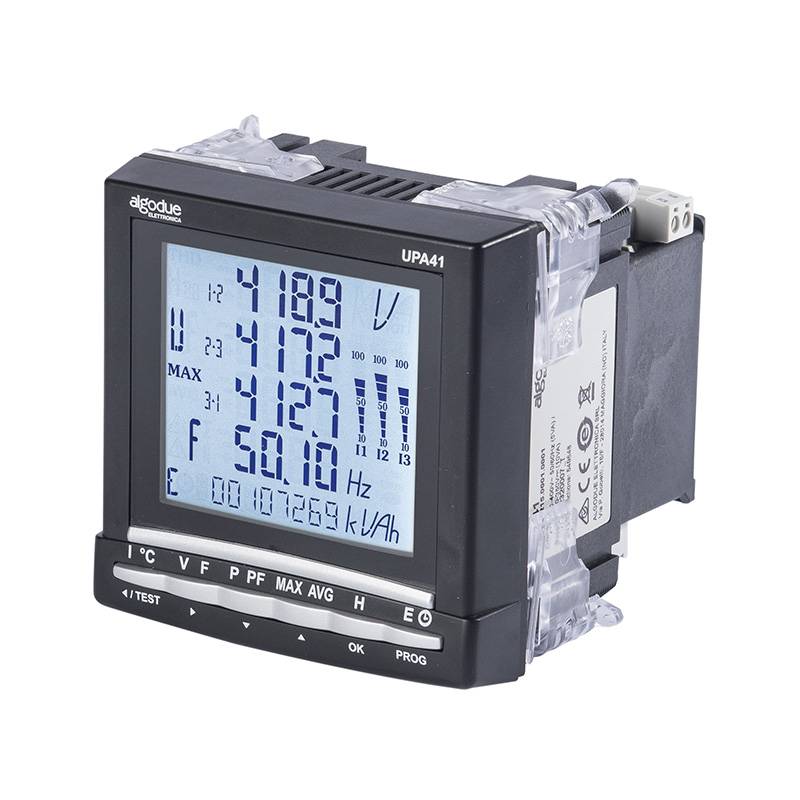

The Algodue UPA41 is a DIN 96x96 panel-mount multifunction energy monitoring meter with built-in neutral current measurement (permanent module included). It accepts 1/5A current transformer input and is available with AC wide-range (110...400VAC/120...350VDC) or DC low-voltage (12...48VDC) auxiliary power supply. The UPA41 adds four-wire neutral monitoring to the capabilities of the UPA30 and supports the same modular expansion via plug-in modules for RS485 Modbus, digital I/O, analog outputs, and temperature detection — all sold separately. UL listed.
Power supply type
SKU 1215.0001.0001
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
1/5A CT input · Neutral current permanent module · AC or DC · UL listed
Technical detail
UPA41 specifications
Electrical
Specifications per the Algodue UPA41 price list. CTs not included. Plug-in modules sold separately.
