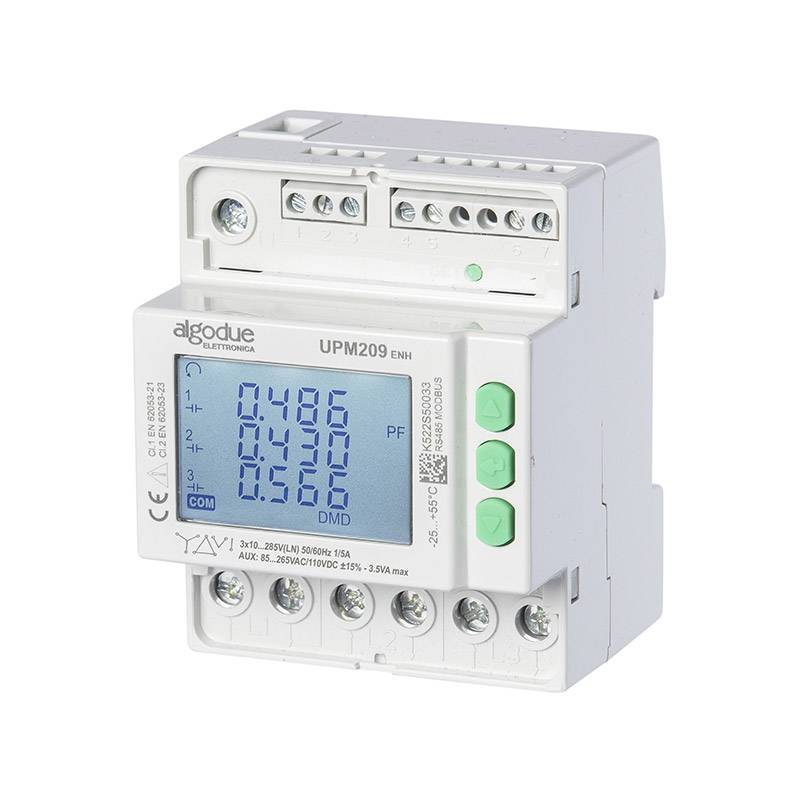

UPM209 — Three-Phase Multifunction Power Meter
Three-phase multifunction power meter with bidirectional 4-quadrant metering and Modbus connectivity.
The Algodue UPM209 is a three-phase multifunction power meter for energy and power monitoring. It provides bidirectional, 4-quadrant measurement with Class 1 active-energy accuracy (IEC/EN 62053-21), RS485 Modbus RTU/ASCII or Modbus TCP communication, and optional onboard data recording up to 8 MB on ENH versions. It mounts on DIN rail (4 modules) and accepts an 85–265 VAC / 110 VDC supply. Available with 1/5A CT or 80A direct input; Rogowski coil input (UPM209RGW, order codes 1210.*) is also available as an ENH-only kit with 3 × MFC150 coils and 3 m cable included.
Input type
Communication protocol
Data recording
SKU 1208.0001.0001
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
Class 1 active energy (IEC/EN 62053-21) · DIN-rail mount
Technical detail
UPM209 specifications
Electrical & communication
In the box
Specifications per the Algodue UPM209 datasheet (EN 50470-1, IEC/EN 62053-21).
Works well with
Recommended Accessories
Rogowski Coils (MFC)
MFC150 — Ø8 mm Flexible Rogowski CoilØ8 mm flexible Rogowski coil for use with the Algodue RPS51 / RPS50 / FCA3000 integrator (not included).
Ø8 mm flexible Rogowski coil
3 m cable, yellow-edge marking
Compatible with Algodue RPS51 / RPS50 / FCA3000
Calibrated for Algodue devices
Integrators (RPS)
RPS51 — Multiscale Rogowski Coil IntegratorMultiscale Rogowski coil integrator with 1 A output. For use with the Algodue MFC150 or MFC140 coil (not included).
Multiscale: 100 / 500 / 1,000 / 5,000 A
1 A RMS output (standard CT compatibility)
Wide supply: 80–265 VAC
For Algodue MFC150 or MFC140 coil
