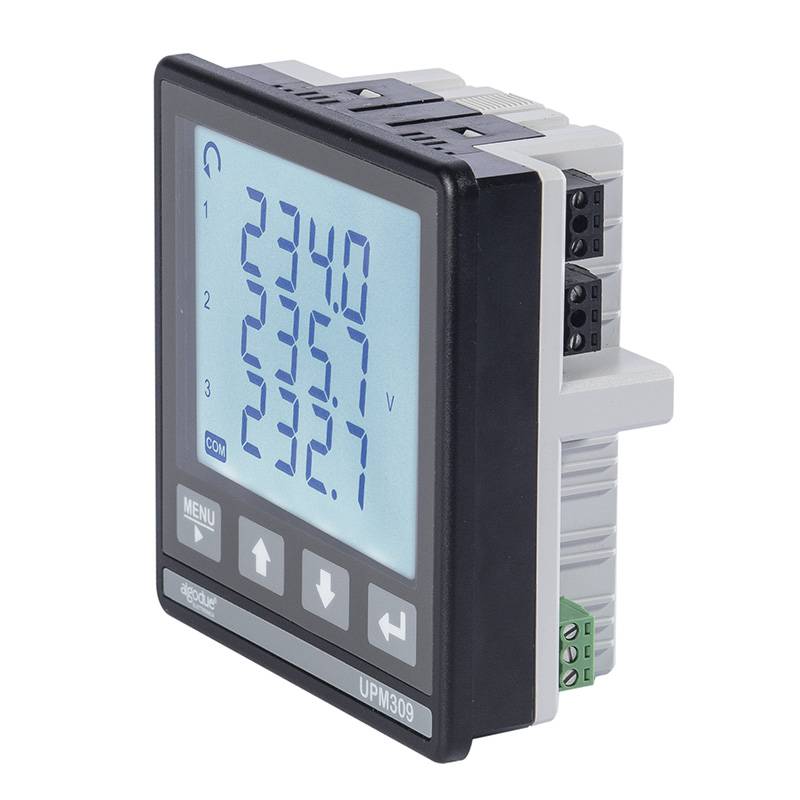

UPM309 — Three-Phase Multifunction Power Meter (Panel)
Three-phase multifunction power meter, panel mount DIN 96x96, 1/5A CT input, RS485 or Ethernet.
The Algodue UPM309 is a three-phase multifunction power meter in DIN 96x96 panel form factor. Available with 1/5A current transformer input (BASIC or ENH recording) or Rogowski coil input (UPM309RGW, ENH only — includes 3 × MFC150 coils and 3 m cable), with RS485 Modbus RTU or Modbus TCP communication. Features separated inductive and capacitive apparent energy counters, 2 NPN digital outputs, 1 digital input for demand synchronisation, and WintoolNET remote management. The Ethernet variant also includes a built-in web server.
Communication protocol
Data recording
Input type
SKU 1211.0001.0001
Backorder
Not held in stock. We order this line from Algodue for you and confirm the dispatch date before it ships.
BASIC or ENH recording · RS485 or Modbus TCP · DIN 96x96 panel
Technical detail
UPM309 specifications
Electrical & communication
Specifications per the Algodue UPM309 product documentation. CTs not included.
